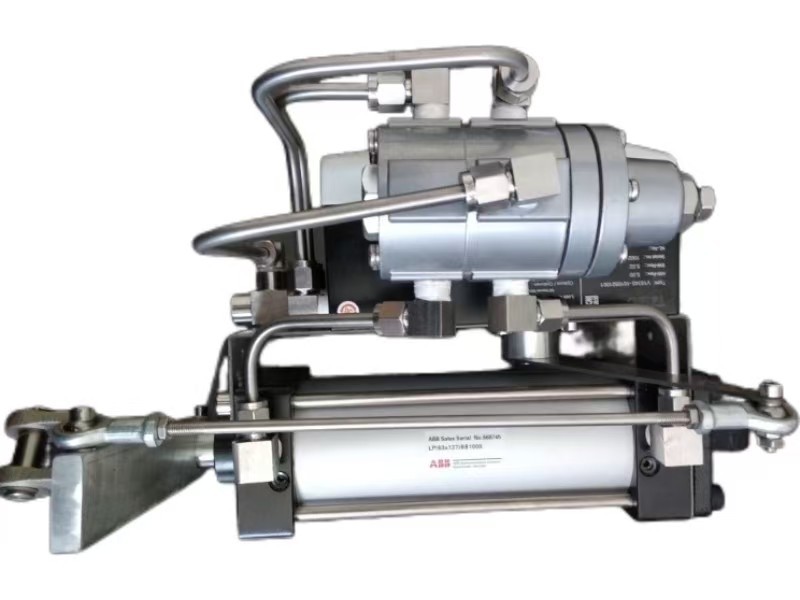

ABB LP10BB10010 Pneumatic Actuator with V18345-2020521001 Positioner: The Complete Package for Precision Flow Control
In industrial automation, true performance is achieved not by individual components, but by their seamless integration. While a powerful actuator provides the muscle to move a valve, it is the positioner that provides the intelligence for precise control. The combination of the ABB LP10BB10010 double-acting pneumatic actuator and the ABB V18345-2020521001 positioner represents a pre-engineered, high-performance solution for demanding modulating and on-off applications. This powerful pairing delivers unmatched reliability, accuracy, and diagnostic capabilities for critical processes in industries ranging from oil and gas to water treatment and power generation.
This integrated system transforms a simple quarter-turn valve into a smart, responsive, and highly efficient control element, ensuring optimal process flow, enhanced safety, and reduced operational costs.
Part 1: The Muscle - ABB LP10BB10010 Pneumatic Actuator
The foundation of this system is the ABB LP10BB10010, a robust double-acting scotch yoke actuator renowned for its durability and high torque output.
-
Scotch Yoke Mechanism: This design is key to its success. It generates maximum torque at the start and end of its 90-degree stroke, which is precisely when it's needed most to break a valve free from its seat and ensure a tight shut-off. This makes it superior to rack-and-pinion designs for applications with high seating loads or sticky media.
-
Double-Acting (BB) Operation: The actuator uses air pressure to drive the valve open and closed. This provides symmetrical, high torque in both directions and a simple, reliable design with no internal springs to fatigue.
-
Rugged Construction: Built with a corrosion-resistant, coated aluminum housing, the LP10BB10010 is engineered to withstand harsh environments, including offshore, coastal, and chemically exposed locations. Its robust design ensures a long service life with minimal maintenance.
Part 2: The Brains - ABB V18345-2020521001 Positioner
The V18345-2020521001 is a specific configuration of ABB's advanced TZIDC series digital positioner. This device is the intelligent interface between the control system and the actuator, translating a standard 4-20 mA control signal into precise pneumatic output to position the valve accurately.
Key features of this positioner include:
-
High Precision and Auto-Calibration: The TZIDC positioner features automatic setup and calibration, which dramatically reduces commissioning time and eliminates human error. It quickly learns the actuator's characteristics and ensures accurate positioning throughout its range.
-
Integrated Diagnostics and Feedback: It continuously monitors the valve's performance, providing valuable data on trends, travel deviations, and potential issues like sticking or increased friction. This enables predictive maintenance, allowing issues to be addressed before they cause unplanned downtime.
-
Multiple Communication Protocols: It supports communication via HART protocol, allowing for easy configuration and data readout using a handheld communicator or control system. This facilitates remote monitoring and adjustment of valve parameters.
-
Robust and Compact Design: The positioner is built to the same high standards as the actuator, capable of operating in demanding conditions. Its compact form factor allows for direct mounting onto the actuator, creating a unified and space-saving package.
The Synergy of the Complete System
When the LP10BB10010 actuator and the V18345-2020521001 positioner are combined, they create a solution that is greater than the sum of its parts.
1. Unmatched Control Accuracy:
The positioner's high-resolution feedback and fast response time ensure that the valve moves to the exact position commanded by the control system. This is critical for modulating applications where precise flow, pressure, or level control is required, leading to improved product quality, reduced energy consumption, and optimized process efficiency.
2. Enhanced Process Safety and Reliability:
The system's diagnostic capabilities provide an early warning system for the entire valve assembly. Operators can detect signs of packing wear, stem friction, or actuator pressure issues. This proactive approach to maintenance prevents catastrophic failures and enhances overall plant safety.
3. Simplified Procurement and Installation:
The part number V18345-2020521001 likely signifies a positioner that is pre-configured and tested for direct compatibility with the LP10BB10010 actuator. This eliminates guesswork, reduces the risk of component mismatch, and speeds up the installation and commissioning process. Engineers and procurement specialists can specify this combination with confidence, knowing they are getting a fully validated system.
4. Reduced Total Cost of Ownership (TCO):
While the initial investment might be higher than a non-integrated solution, the long-term benefits are substantial. Reduced downtime, lower maintenance costs through predictive diagnostics, improved process efficiency, and extended valve life all contribute to a significantly lower total cost of ownership over the asset's lifecycle.
Conclusion: The Intelligent Choice for Critical Control
The integrated package of the ABB LP10BB10010 actuator and V18345-2020521001 positioner is more than just a valve control system; it is a strategic asset for any modern industrial operation. It delivers the raw power needed for tough duties combined with the intelligent control required for precision and insight.
For engineers designing new facilities or upgrading existing control loops, specifying this pre-validated ABB combination guarantees performance, simplifies engineering, and future-proofs your investment. It is the definitive solution for anyone who cannot compromise on control accuracy, operational safety, and asset reliability.
