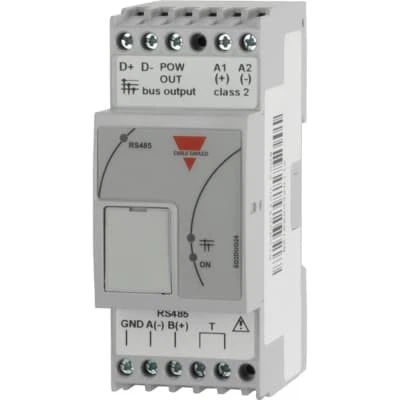

Carlo Gavazzi Dupline Fieldbus Generator, 2-wire and 3-wire Bus System, Modbus-RTU RS485, 2-DIN Module Din Rail Mount, Supply: 15-24VDC.
SD2DUG24 is designed as a cost-effective Plug & Play solution for interfacing Dupline® I/O's to control systems. It performs three functions: Dupline® channel generator, power supply synchronization (enables 3-wire system with supply) and Modbus RS485 interface. It is fully programmable via software and the software is free downloadable from Carlo Gavazzi website. It substitutes the G34900000xxx and G34960005xxx modules.
General Characteristics
- Modbus-RTU slave interface.
- Built-in 2 and 3-wire Dupline® Channel Generator.
- Generates 8, 16, 24, 32, 40, 48, 56, 64, 96 and 128 channels.
- All Dupline® protocols are supported.
- LED-indications for supply, Dupline® carrier and RS485.
- Formulas to scale the raw data read from the field.
- Easy connection to the PC via a USB port.
